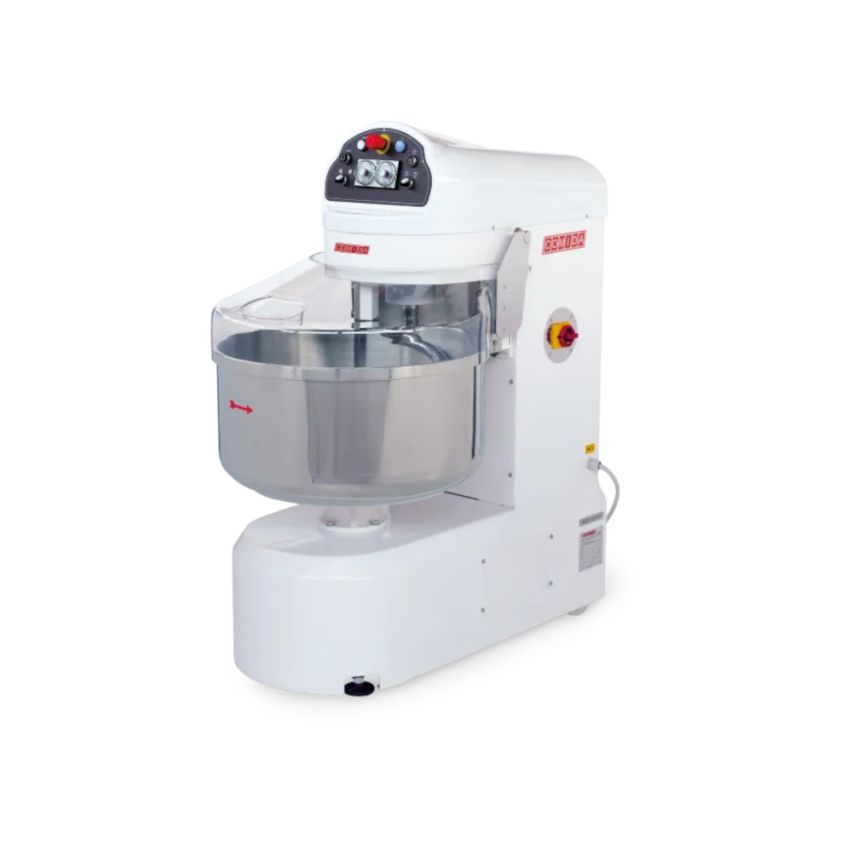

Zanolli Galassia PN 40 QSR Dough Spiral Mixer | 2 Speed | 67 litre Capacity

$14,300.00 Inc. GST

The Zanolli Galassia PN40 is part of the professional range of QSR dough mixers, meticulously engineered for exceptional durability and strength. Designed to handle a single bag of 25 kg of dry flour, this mixer is capable of kneading 40 kg of finished dough within its generous 67-liter bowl capacity. It strikes the perfect balance between the hook’s strokes and the bowl’s rotations per minute, resulting in well-oxygenated dough, primed for baking into high-quality loaves. Equipped with a two-speed motor and a SITEC timer that automatically switches between speeds, the Galassia PN40 allows users to customize the machine’s performance to meet specific needs.

At the heart of the Galassia PN40 is a control panel that provides precise management of the kneading process, enabling bakers to set the speed and time for manual, semi-automatic, or automatic operation, ensuring the desired dough consistency. This model features two independent motors—one for the spiral shaft and another for the bowl shaft—allowing for higher revolutions per minute and separate control over their speeds. This design delivers unmatched power and torque, making it capable of handling even the toughest mixes. The forged axle, positioned under the head cover, rotates the spiral, amalgamating, mixing, refining, and oxygenating the dough effectively. The opposing rotations of the spiral and bowl work in harmony to oxygenate the dough and develop a strong gluten network, essential for achieving the ideal texture in bread. Additionally, the mixer has a reverse function that allows users to reverse the direction of rotation of the bowl to accelerate the mixing of ingredients and enable easy dough emptying.

For added convenience, the PN40 includes an easy dough extraction feature facilitated by a bowl jog push-button, enhancing usability during the mixing process. The bowl continuously draws new dough beneath the spiral, ensuring thorough mixing throughout.

Designed for practicality, the Galassia PN40 features a sturdy steel chassis along with a heavy-gauge stainless steel bowl, spiral tool, and solid breaking column for durability. It is equipped with three wheels—two fixed back wheels and one at the front—facilitating easy movement within the kitchen. For added safety, the machine halts if the movable protection is opened, thanks to the activation of a micro switch. The Zanolli Galassia PN40 stands out as a reliable, high-performance mixer for bakers seeking consistent, quality results in their bread production.



  • Meticulously engineered for exceptional durability and strength in intensive baking environments, delivering unmatched power and torque to handle even the toughest mixes.
  • Sturdy solid steel chassis construction offers reliable support even under heavy workloads, making it ideal for the most demanding baking environments.
  • Heavy-duty solid stainless steel bowl, spiral tool, and breaking column provide exceptional durability and long-lasting performance for rigorous use.
  • The bowl design continuously draws new dough beneath the spiral for thorough mixing and effective dough processing.
  • Capable of handling a single bag of 25 kg of dry flour and kneading up to 40 kg of finished dough within a generous 67-liter bowl capacity.
  • Strikes the perfect balance between the hook’s strokes and the bowl’s rotations per minute, producing well-oxygenated dough ready for baking into high-quality loaves
  • Equipped with a powerful two-speed motor for customizable performance to meet specific mixing needs.
  • Two independent motors—one for the spiral shaft and another for the bowl shaft—provide higher revolutions per minute and separate speed control.
  • Features a SITEC timer that automatically switches between speeds, providing enhanced control and two corresponding speeds for the spiral tool.
  • Control panel enables precise management of the kneading process, allowing bakers to set speed and time for manual, semi-automatic, or automatic operation.
  • Forged axle design effectively rotates the spiral, amalgamating, mixing, refining, and oxygenating the dough.
  • Reverse function allows users to change the bowl’s rotation direction to accelerate the mixing of ingredients and enable easy dough emptying.
  • Easy dough extraction feature with a bowl jog push-button for enhanced usability during the mixing process.
  • Safety feature that halts operation if the movable protection is opened, ensuring safe use.
  • Opposing rotations of the spiral and bowl enhance dough oxygenation and gluten development for optimal bread texture.
  • Equipped with three wheels—two fixed back wheels and one at the front—for easy movement within the kitchen.
Model
Galassia PN40
Voltage
415 Volts
Watts
3.55kW
Plug Supplied
No
Motor Speeds
2 speed
Finished Dough Capacity
40kg
Bowl Capacity
67L
Bowl Dimensions
Ø 500x340mm
Minimum Hydration
55%
Width (mm)
550
Depth (mm)
1030
Height (mm)
1050
Warranty
2 years parts and labour
